Description
Cantilever Racking Single Sided
Our Cantilever racking system is based on modular bays and fittings to provide cost effective storage of long and awkward items.

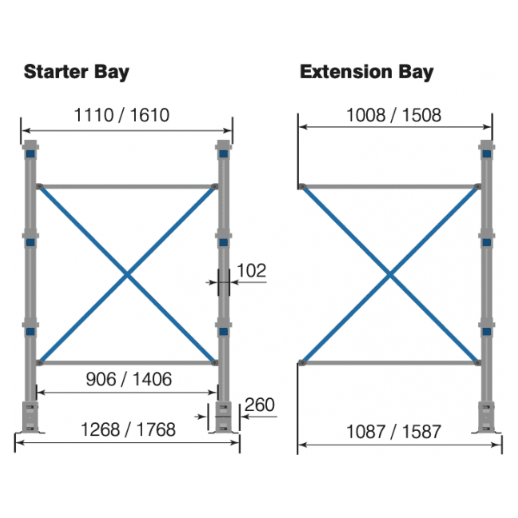

Each Single sided bay comes complete with three arms per frame and you can add or deduct the number of levels required. The arms can be fitted with end stops to secure loose products. The frames are spaced 1000mm apart with bolted on X bracing, so you can easily work out your run using the starter and extension bay.
✔ Arms adjust every 75mm
✔ Complete with 3 arms per upright
✔ Simple to build and configure
✔ Colour: Galvanised and Blue
Dimensions: (H x W x D mm)
1976 x 1000 x 780 - Arm Length 600mm - 600KG Capacity per arm
1976 x 1000 x 980 - Arm Length 800mm - 400KG Capacity per arm
1976 x 1000 x 1180 - Arm Length 1000mm - 250KG Capacity per arm
2432 x 1000 x 780 - Arm Length 600mm - 600KG Capacity per arm
2432 x 1000 x 980 - Arm Length 800mm - 400KG Capacity per arm
2432 x 1000 x 1180 - Arm Length 1000mm - 250KG Capacity per arm
2964 x 1000 x 780 - Arm Length 600mm - 600KG Capacity per arm
2964 x 1000 x 980 - Arm Length 800mm - 400KG Capacity per arm
2964 x 1000 x 1180 - Arm Length 1000mm - 250KG Capacity per arm

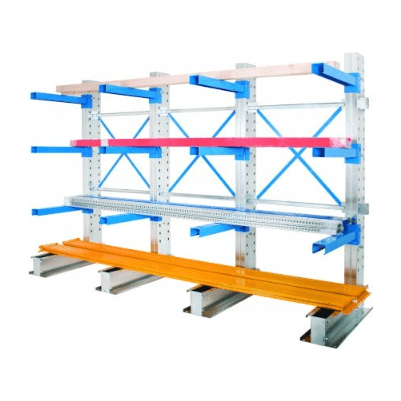

Main Picture shows 3 bays
Additional arms available upon request
3 - 5 days delivery
