Description
The hydraulic range of pallet stackers are fitted with ergonomic pump handles and foot pumps, giving you a choice of operation. The stackers are sturdy, compact and constructed from robust steel profiles. The lowering speed is fully adjustable.

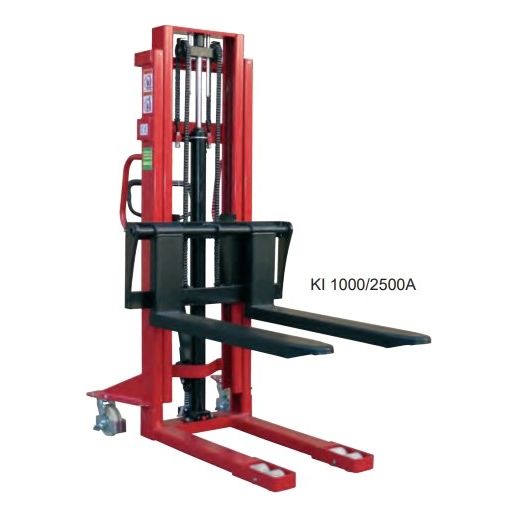

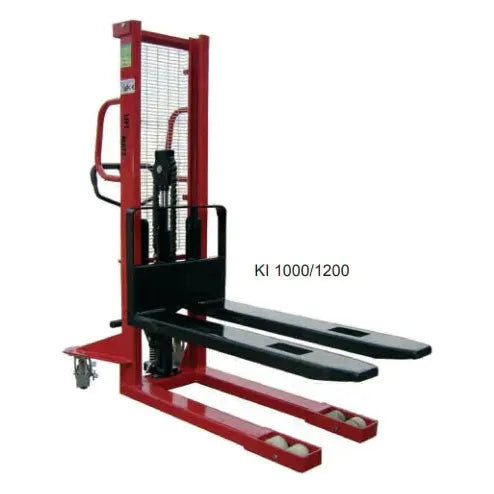

The hydraulic range of pallet lifters is ideal for companies who wish to lift and handle euro pallets in a warehouse environment. This stacker is available with four different lift heights - 1200mm, 1600mm, 2500mm or 3000mm. The first two models are single masted, whilst the 2500 and 3000mm models are double masted (duplex) versions, which allows for a lower overall closed height.
| Model (KI 1000/-) | 1600 | |||
| Capacity | 1000kg | |||
| Load Centre | 600 mm | |||
| Max. Lift Height | 1600mm | |||
| Lowered Fork Height | 85 mm | |||
| Fork Length | 1150 mm | |||
| Width over Forks | 550mm | |||
| Overall Length | 1640 mm | |||
| Overall width | 740mm | |||
| Overall Closed Height | 2080mm | |||
| Mast Type | Single | |||
| Wheels | Nylon ø 150 / 80 mm | |||
| Approx. Weight | 230kg | |||
Our stacker trucks come supplied with a 12 month warranty.
Delivery 5 days
