Description

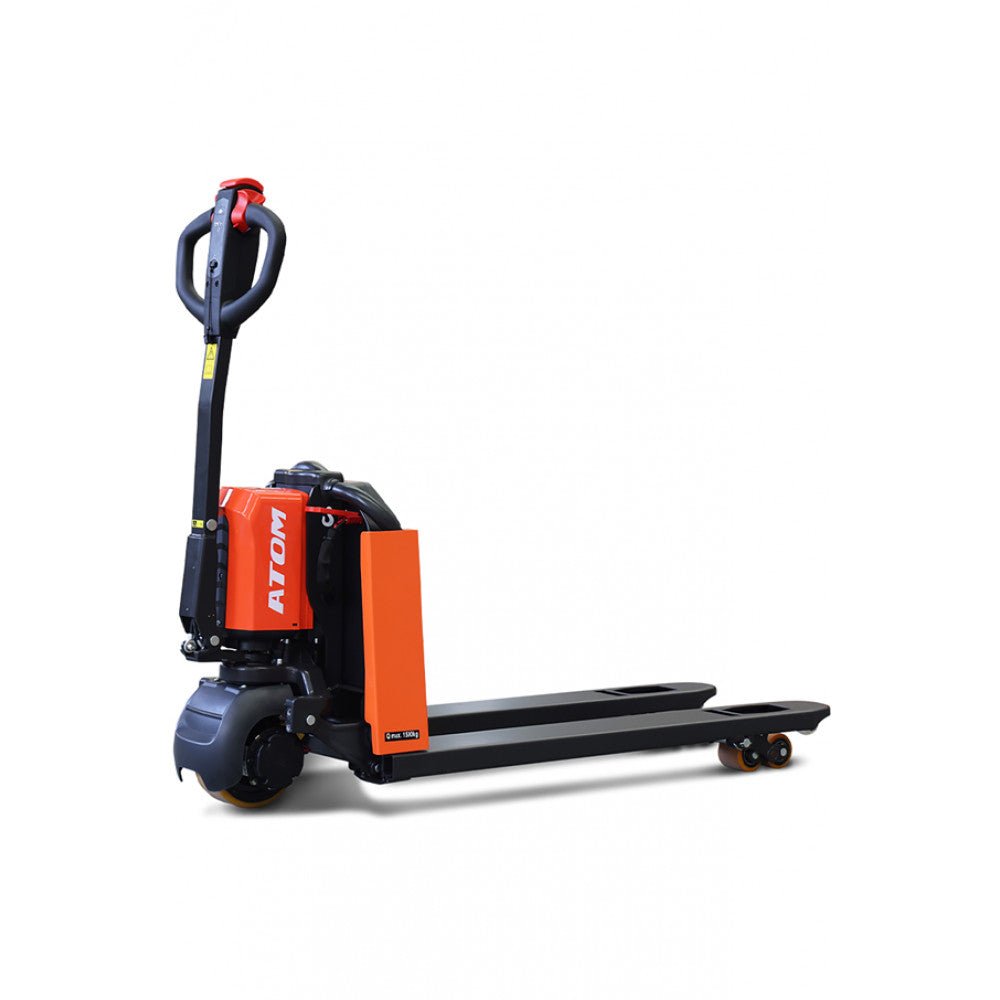

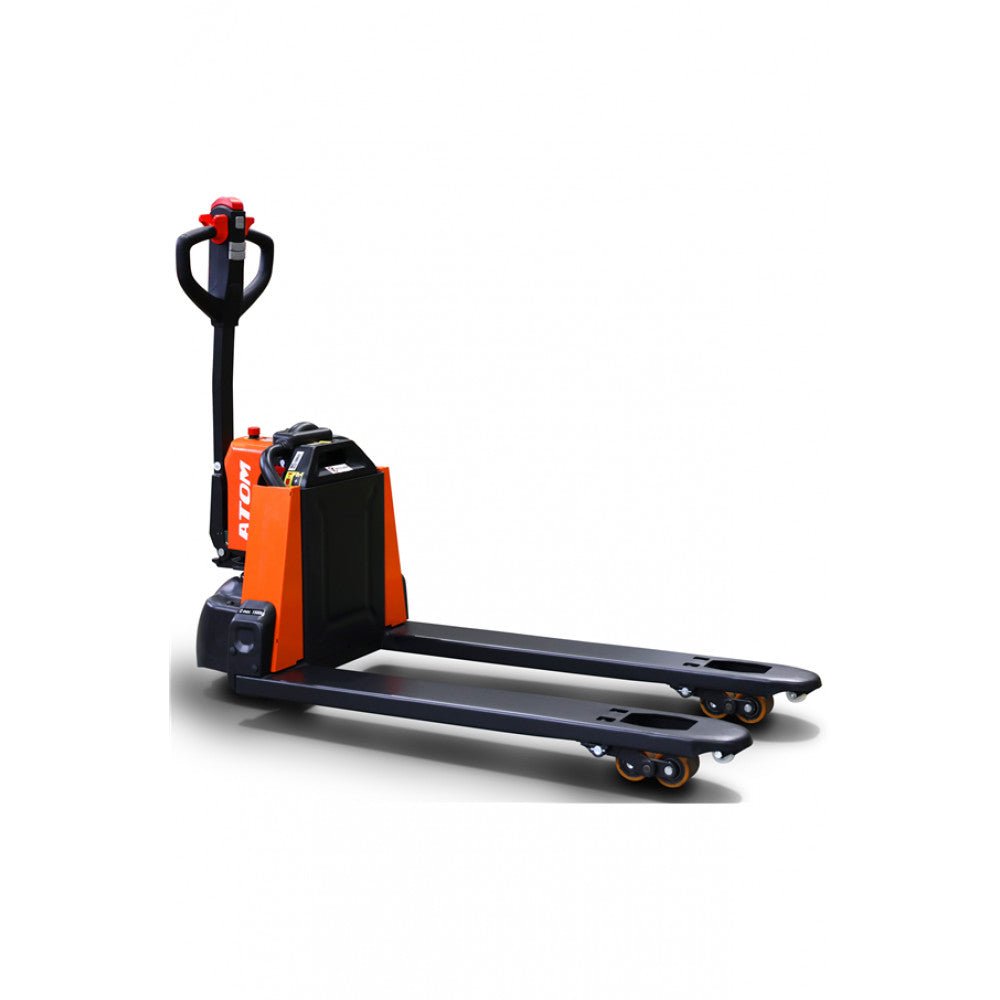

The new ATOM Lithium powered electric Pallet Truck is designed under the current industrial trend of light duty and Lithium power solution. It continues the concept of the Edge series Pallet Trucks with compact and smart design but with a target to minimize the cost in manufacturing to offer a more affordable powered light duty material handling solution to the end users
The Atom continues to offer the function and solution usually for high-end electric Pallet Trucks including Can-bus Communication, Fault Code, Battery Discharging Indicator, Drive with the tiller in vertical position, Electric lift and lower control etc...., make it the perfect solution for the material handling for retail, small warehouses and so on
Smart lithium battery for fast charging and opportunity charging, no maintenance needed
The 'Atom' is equipped with maintenance-free 24V/23Ah Lithium battery with optional different capacities for various application
The frame of the truck is surrounded by steel covers making the truck looking different and also ensuring the protection of the components
The shape of the forks allow easy entrance and exit from pallets. Full length double sided C-shape reinforcements of forks significantly increase strength and rigidity of frame
The Truck has a capacity of 1500kg and ability to overcome ramps up to 6/16% (laden/unladen) makes it suitable for work in loading docks an on delivery operations in difficult conditions
The minimised service weight of 127kg makes the Truck ideal to be used for delivery lorries with tail lifts platforms for goods distributions without sacrificing the transported weight
With a turning radius of 1340mm with lifted/lowered forks make this Truck extremely compact and ideal for use in confined spaces of retail stores, elevators or business centres
The truck is intended to be used for indoor applications with ambient temperatures between +5°C and +40°C and for various transportation applications without crossing permanent obstacles or potholes
3-6hrs working time on the battery (additional batteries sold separately)

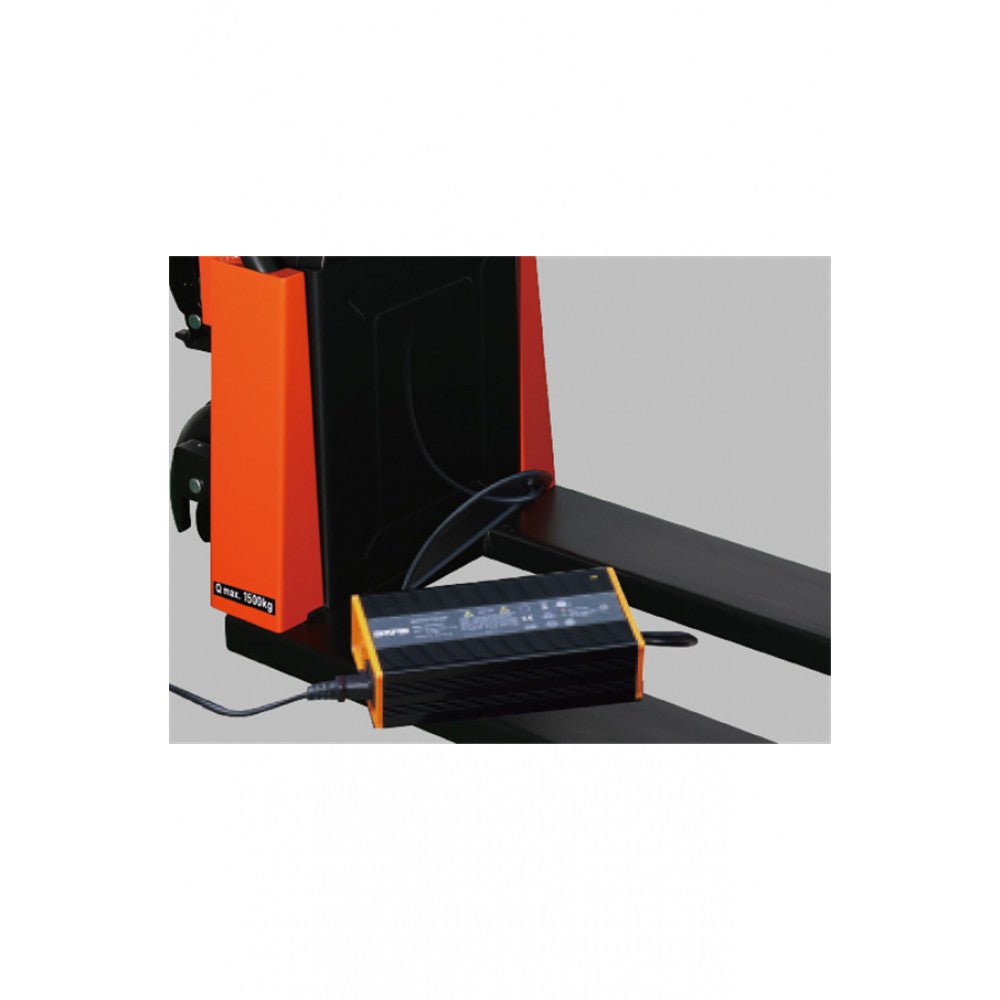

Minimum charge time: 2-3hrs
Fully electric driven and electric lifting
Fork dimensions: 540mm wide x 1150mm long
Overall length: 1543mm
Lift height: 115mm
Height lowered: 80mm

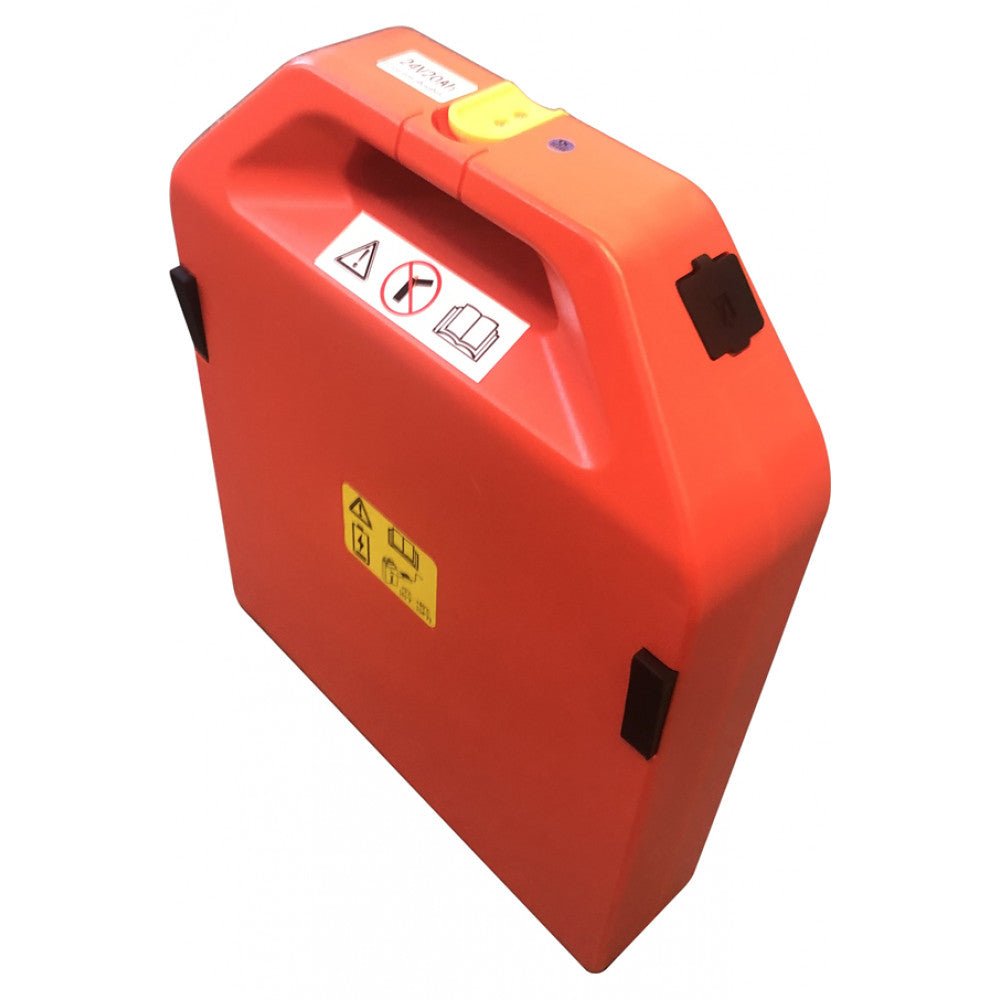

Lithium battery weight: 6.5kg
