Description
Manual Hydraulic Pallet Stacker 1000KG Load Capacity
The hydraulic range of pallet stackers are fitted with ergonomic pump handles and foot pumps, giving you a choice of operation. The stackers are sturdy, compact and constructed from robust steel profiles. The lowering speed is fully adjustable.

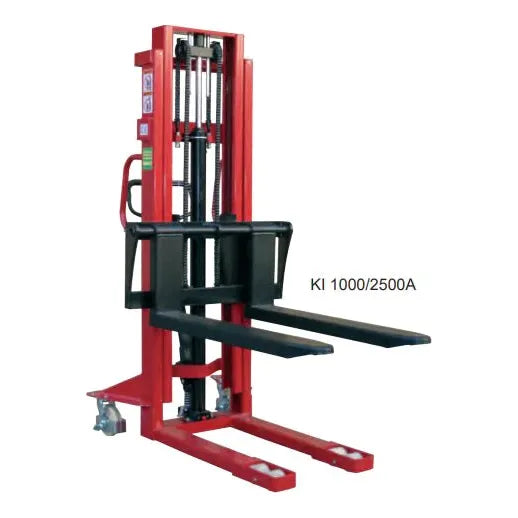

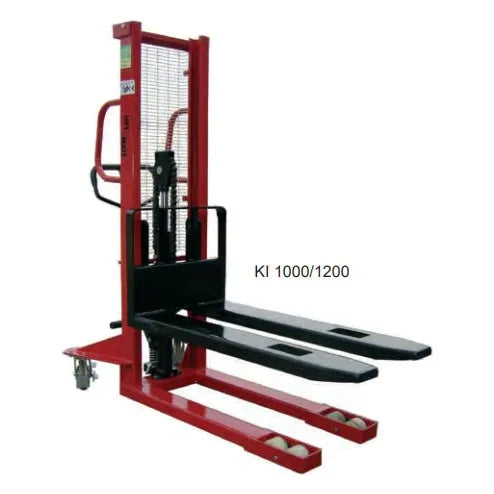

This stacker is available with four different lift heights - 1200mm, 1600mm, 2500mm or 3000mm. The first two models are single masted, whilst the 2500 and 3000mm models are double masted (duplex) versions, which allows for a lower overall closed height.
✔ Ergonomic pump handles
✔ Foot pumps
✔ Constructed from robust steel profiles.
✔ The lowering speed is fully adjustable.
| Model (KI 1000/-) | 1200 | 1600 | 2500 | 3000 |
| Capacity | 1000kg | |||
| Load Centre | 600 mm | |||
| Max. Lift Height | 1200mm | 1600mm | 2500mm | 3000mm |
| Lowered Fork Height | 85 mm | |||
| Fork Length | 1150 mm | |||
| Width over Forks | 550mm | 550mm | 580mm | 580mm |
| Overall Length | 1640 mm | |||
| Overall width | 740mm | 740mm | 840mm | 840mm |
| Overall Closed Height | 1720mm | 2080mm | 1840mm | 2080mm |
| Mast Type | Single | Single | Duplex | Duplex |
| Wheels | Nylon ø 150 / 80 mm | |||
| Approx. Weight | 210kg | 230kg | 276kg | 307kg |
