Description
Our heavy duty Longspan Racking is made and designed to last a lifetime. Made with 3mm steel to ensure quality and support heavy loads, finished with powder coated Royal Blue (RAL 5005) and Orange (2005) and tested for load, stability and rigidity.

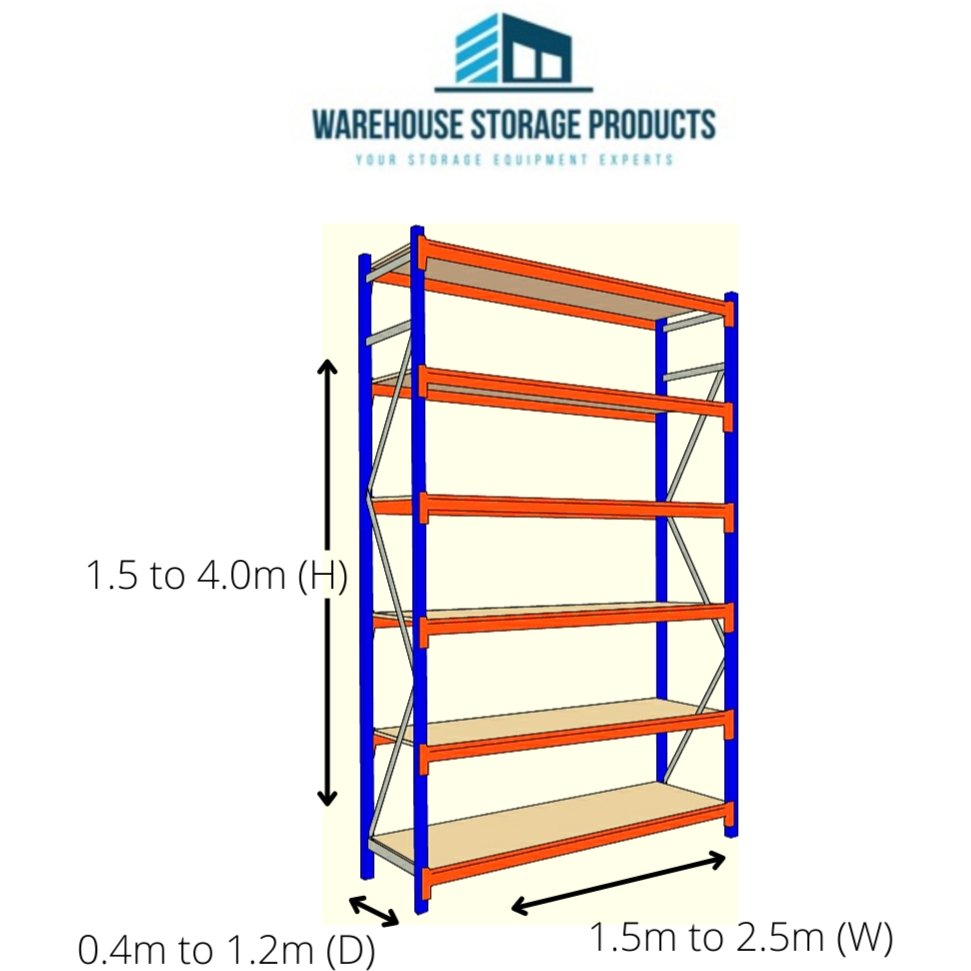

Our Longspan Racking bays are available in sizes 1.5m to 4m in height and 4/5/6/900mm or 1200mm deep and 1.5m to 2.5m wide.
Other heights and depths available on request.
Load Capacity Per Shelf - UDL (Uniformly Distributed Load)
1.5m wide shelf - 600Kg UDL
1.8m wide shelf - 500Kg UDL
2.0m wide shelf - 400Kg UDL
2.5m wide shelf - 300Kg UDL
Max bay load between 2 frames 2500Kg
1x Longspan Racking Starter Bay includes;

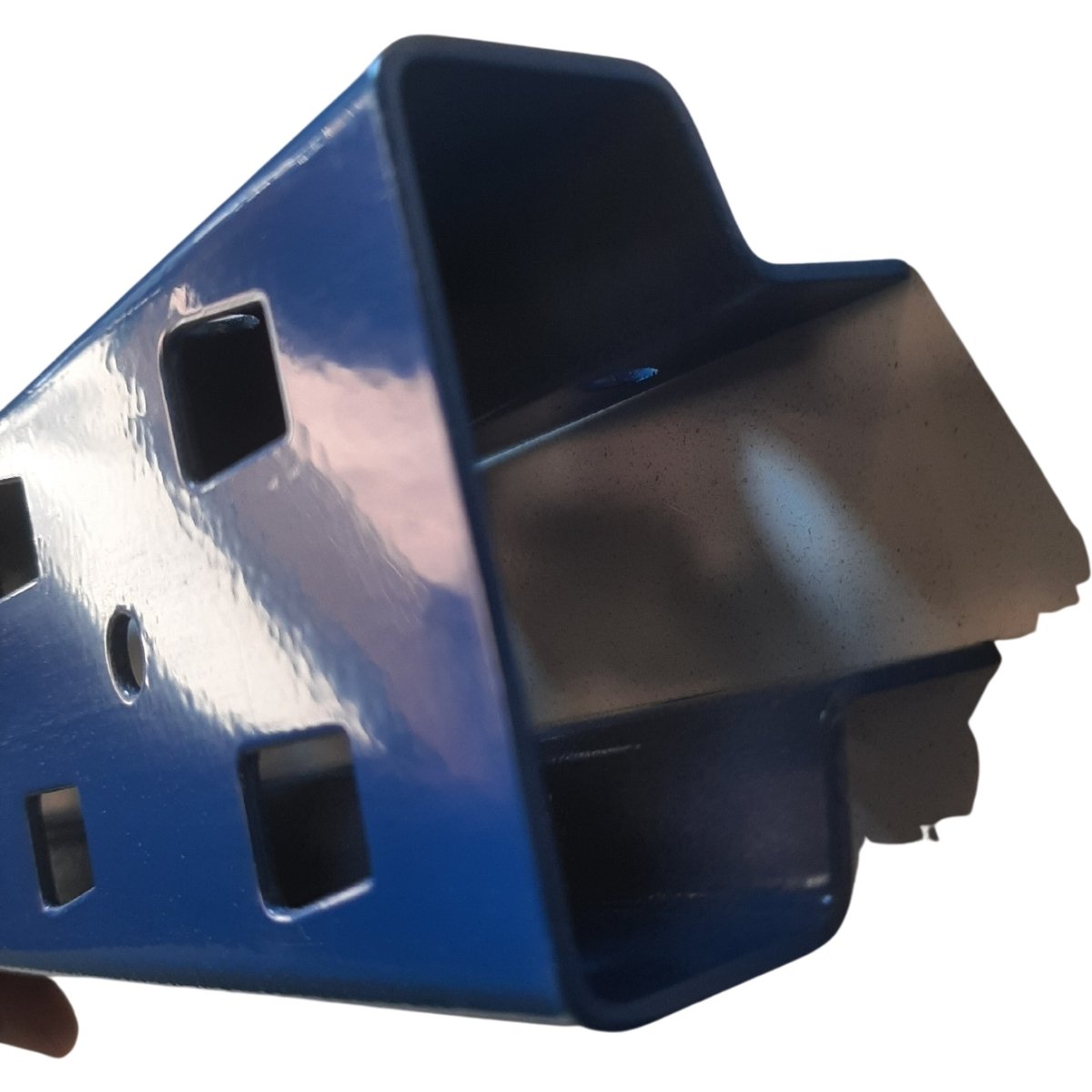

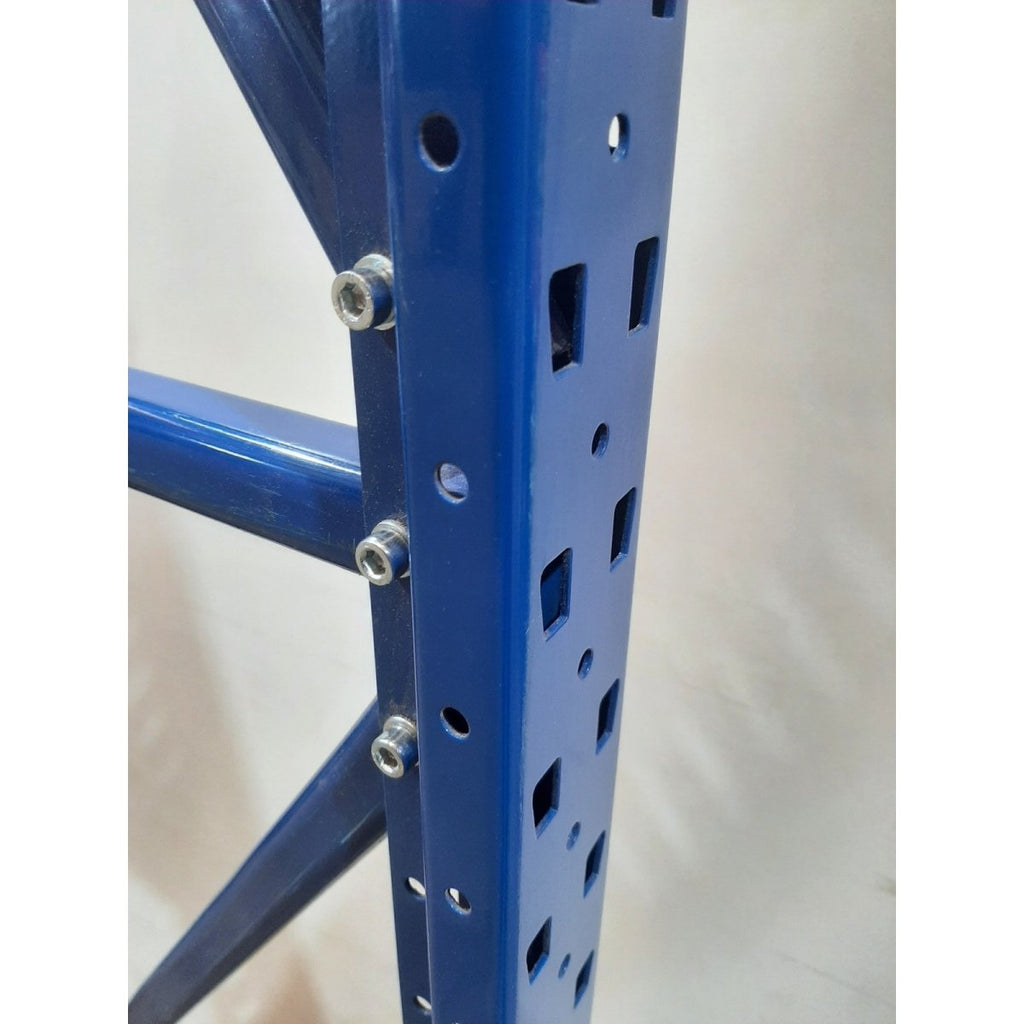

- 2 x Uprights and Bracing

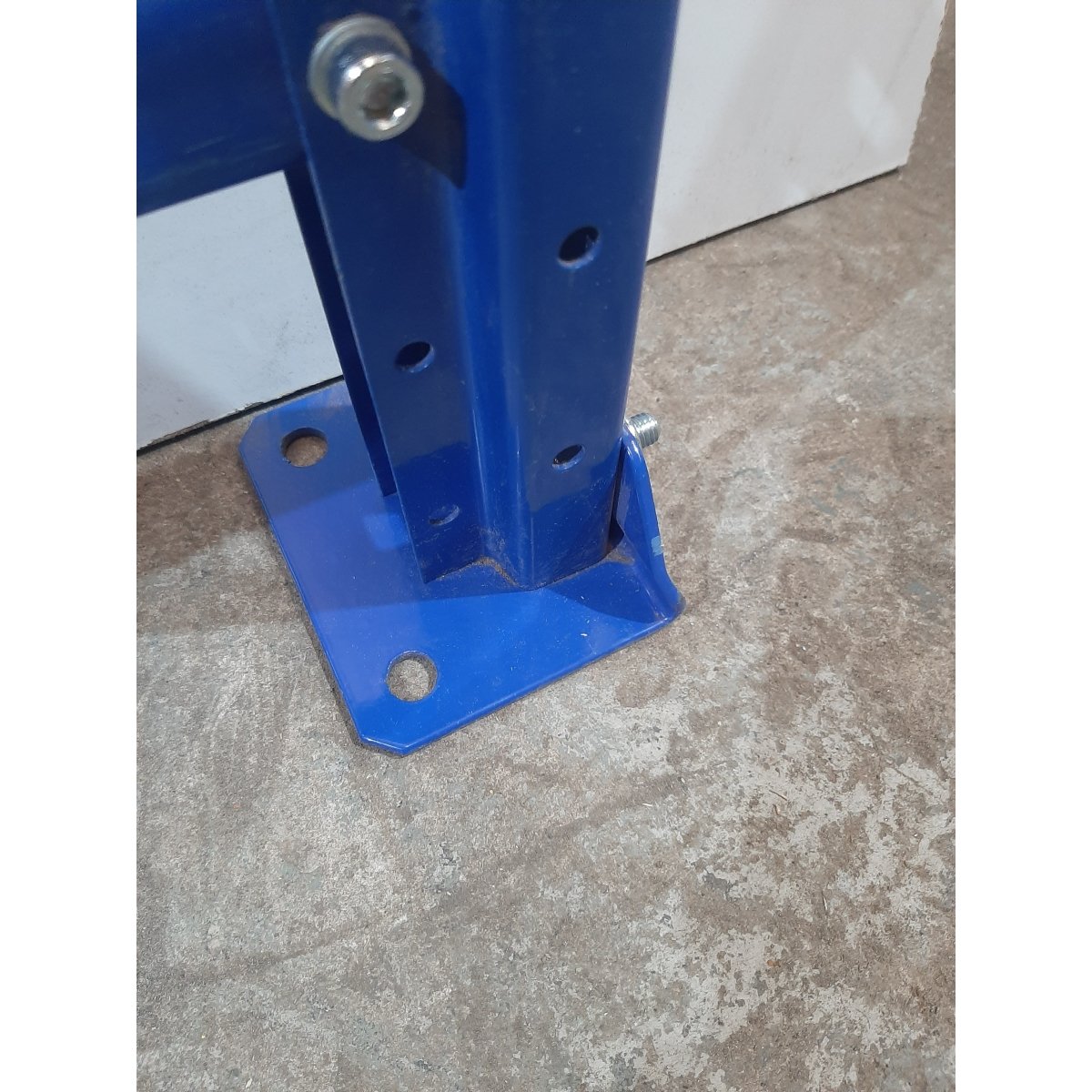

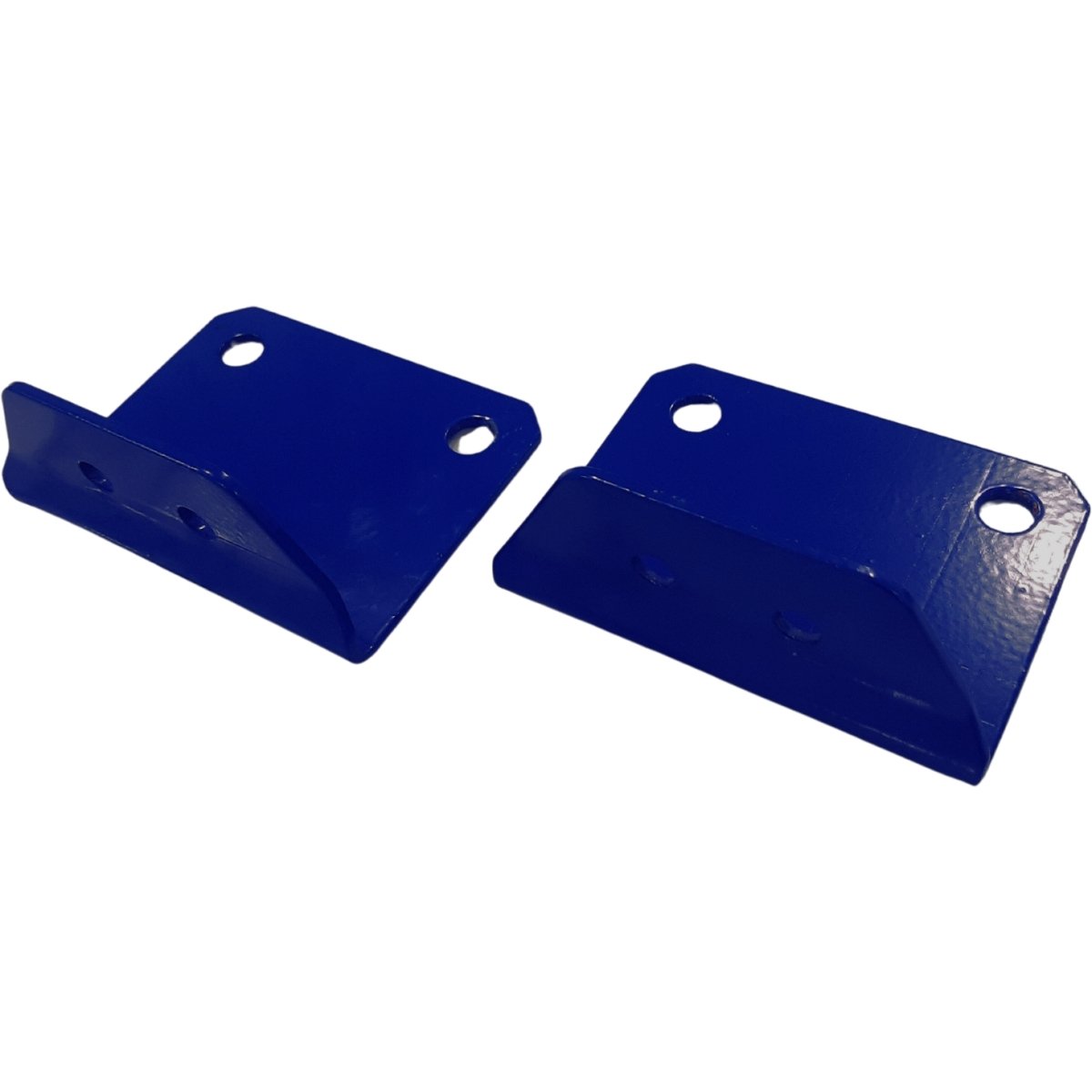

- 4 x Base Plates

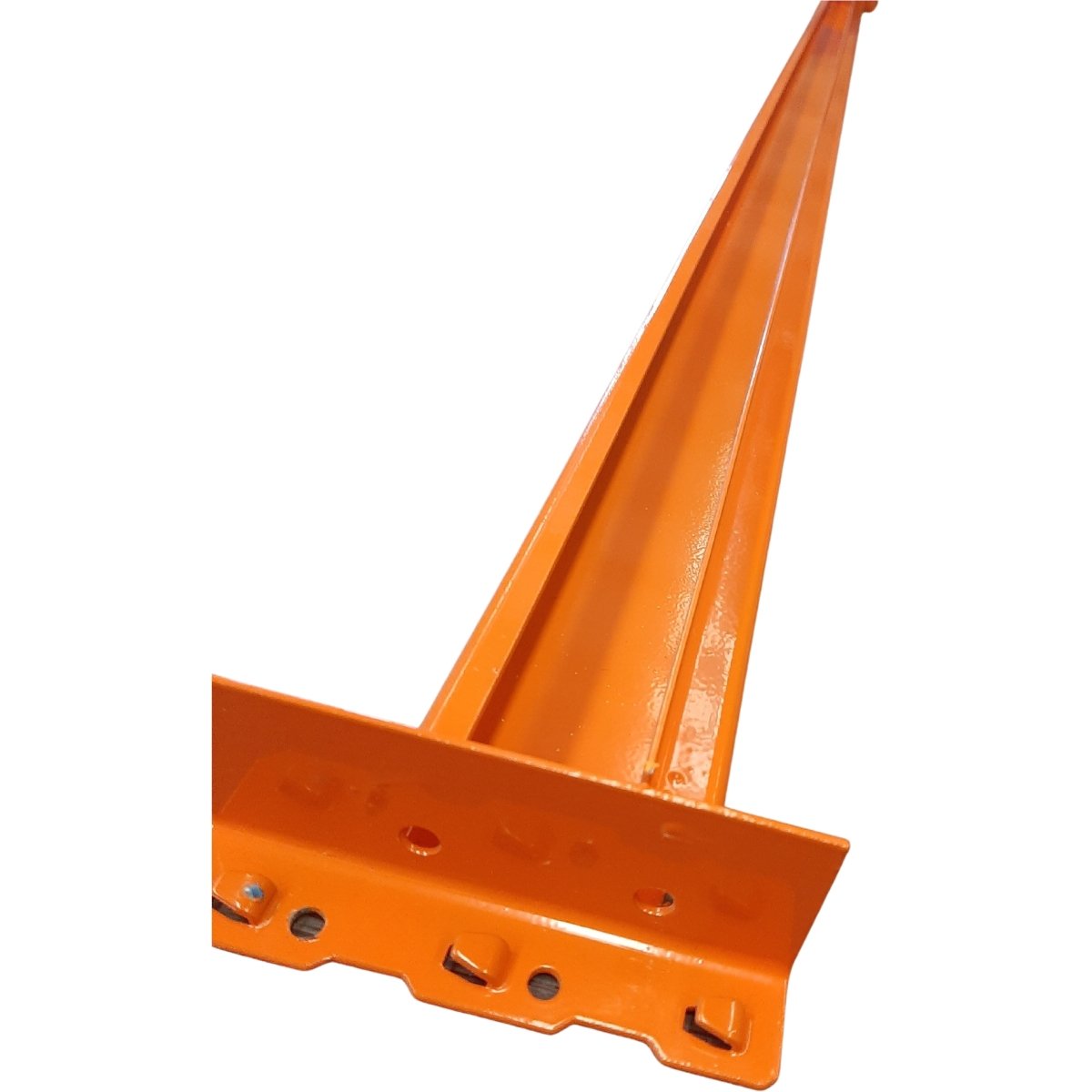

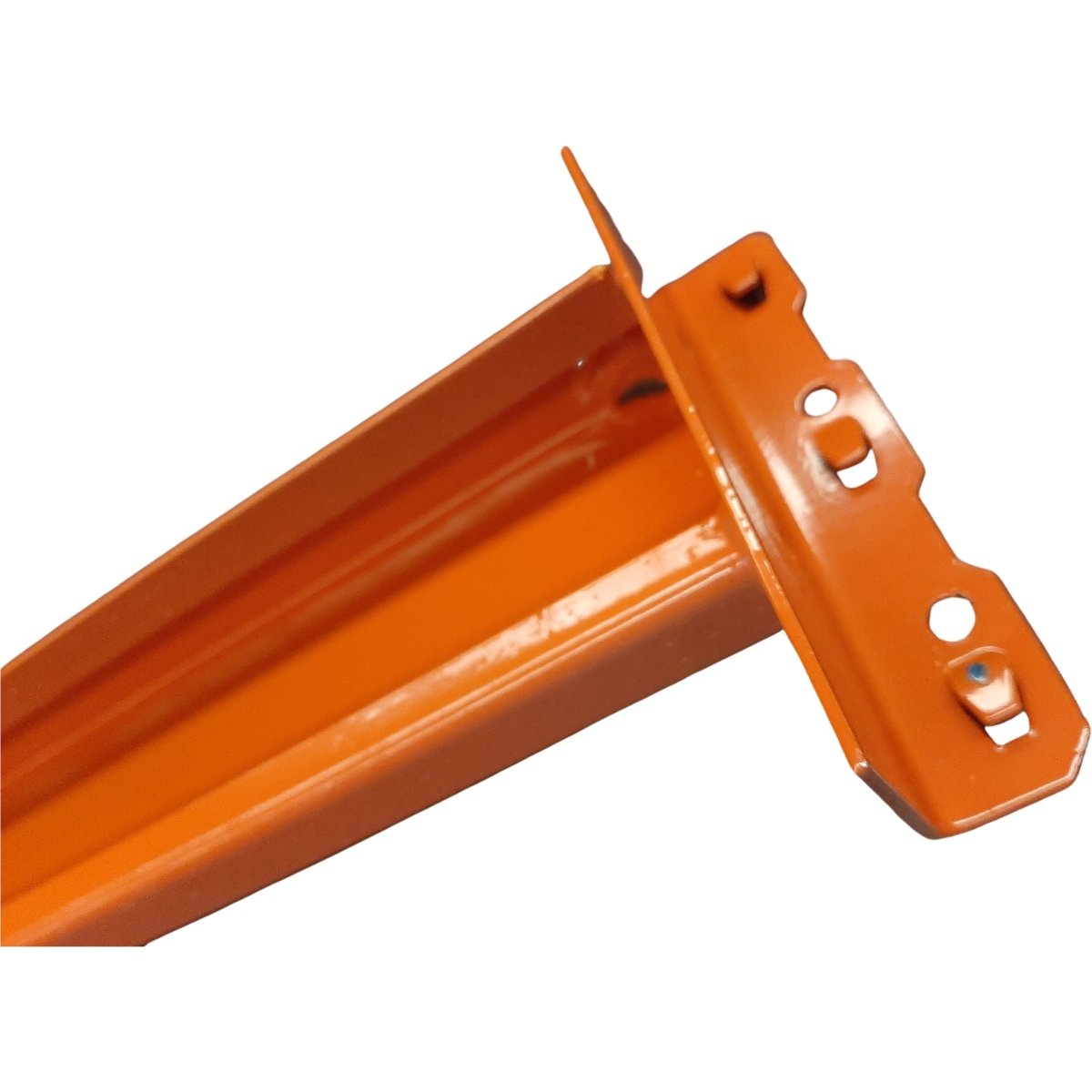

- 12 x Beams
- 6 x Chipboard Shelf
- Screws and nuts required for assembly for the frame are included
Note. Floor fixing bolts are available but are sold separately.
3m+ height frames will have an upright connector included.
For Longspan 6 shelf 2.5m height Add-on bay click here
We offer 5 years guarantee with our Longspan Racking.
Delivery 5 -7 days
FREE SITE VISIT FOR RACKING AVAILABLE ON REQUEST
How to assemble:
Average build time: 10 - 15 mins per bay (requires two people).
Tools required: 2 x 13mm/adjustable spanners and a rubber mallet
Step 1 – Build end frames as per relevant drawing attached
Step 2 – Stand built end frames upright and support vertically

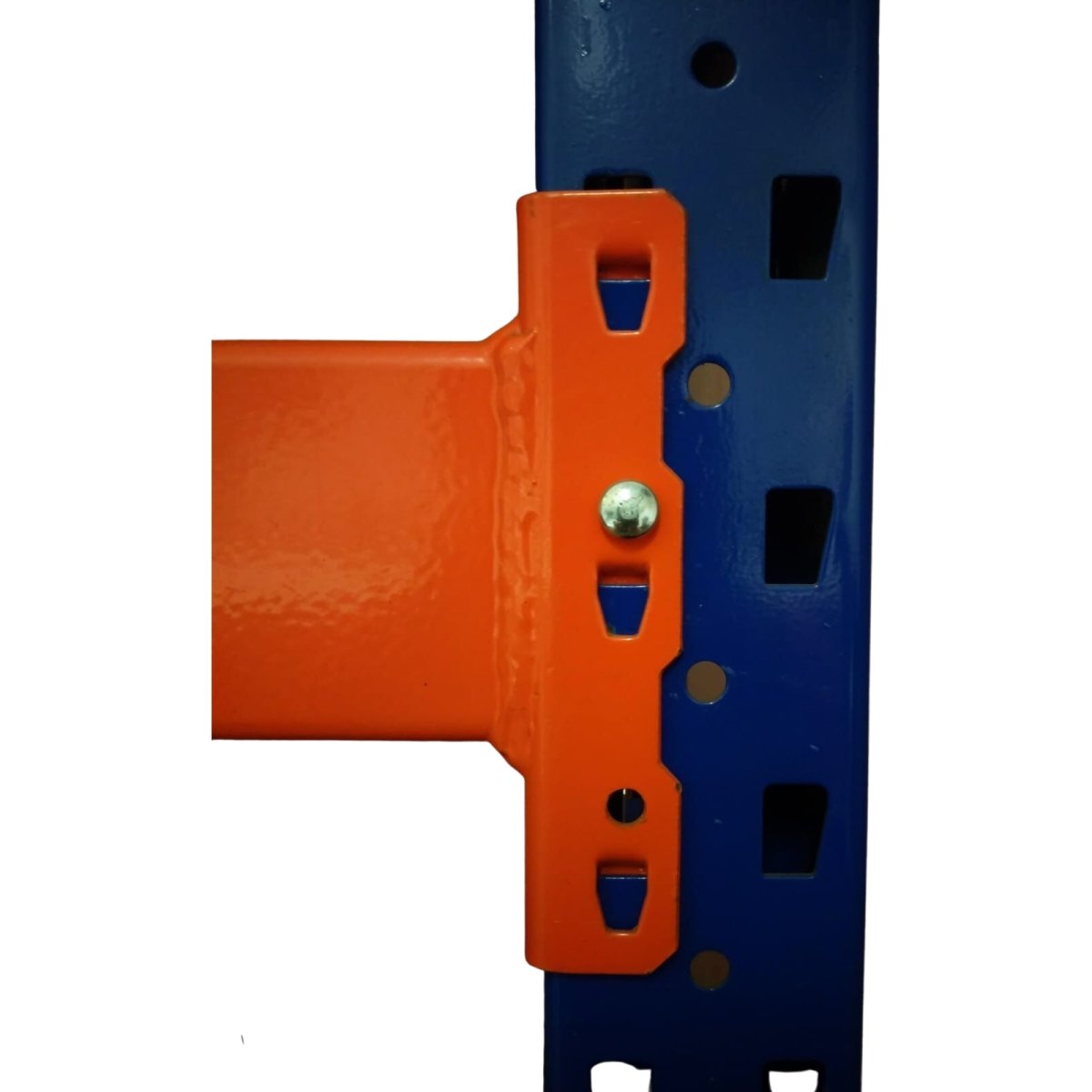

Step 3 – Locate beams into slots in upright in the required position starting at the bottom
Step 4 – Fit remaining beams to create shelf heights as required
Step 5 – Locate safety pins into the holes at the end of each beam to prevent dis-lodgement.
Step 6 – Locate shelves onto beams using the correct number of shelf supports as shown below.
Step 7 – Fix to floor or wall if required according to the 5:1 height to depth ratio.
